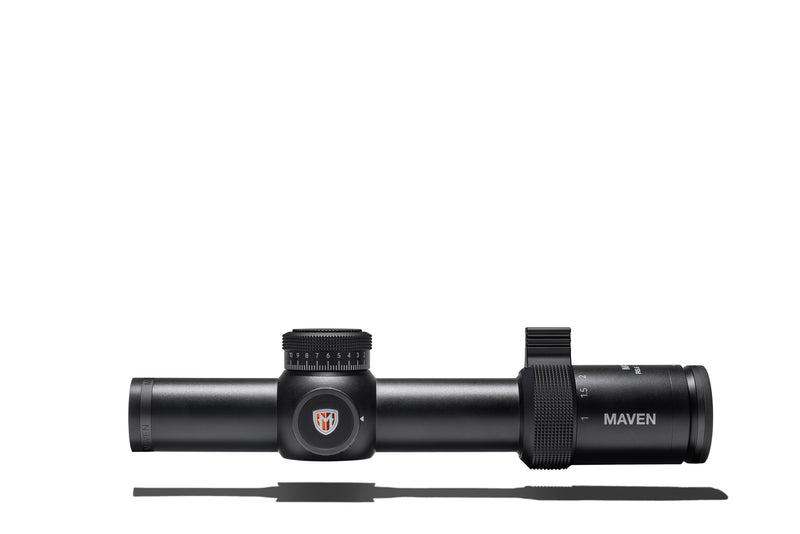

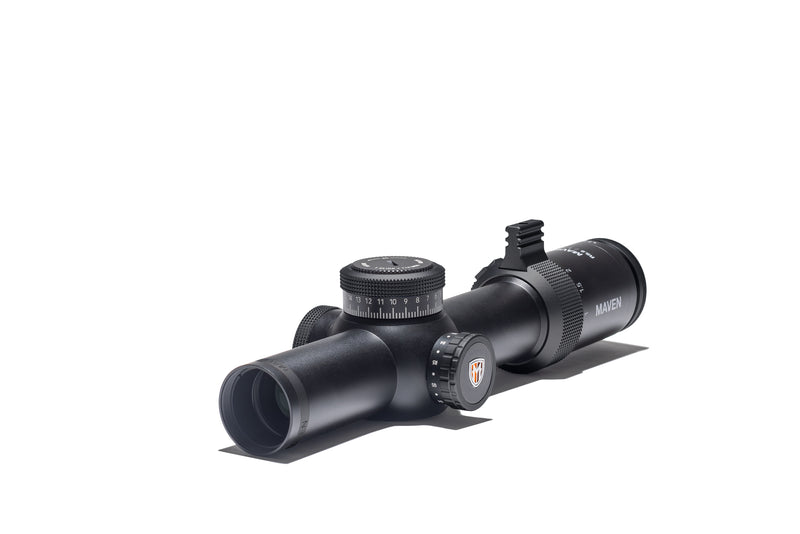

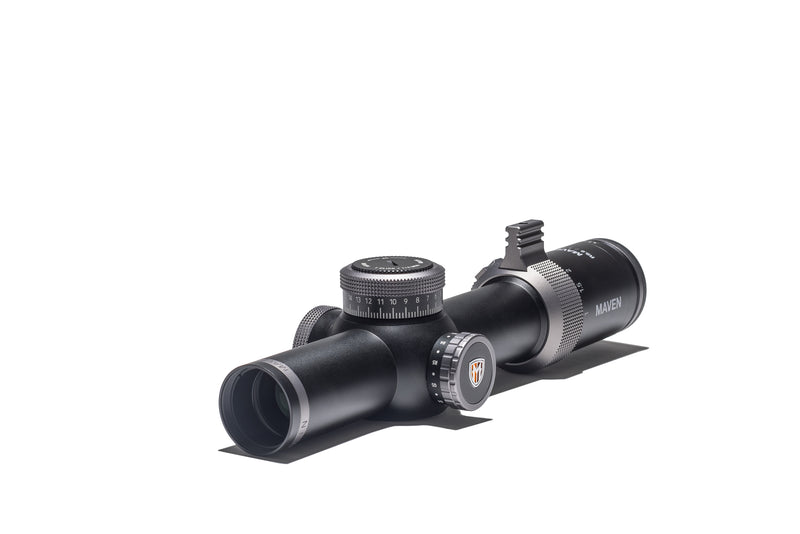

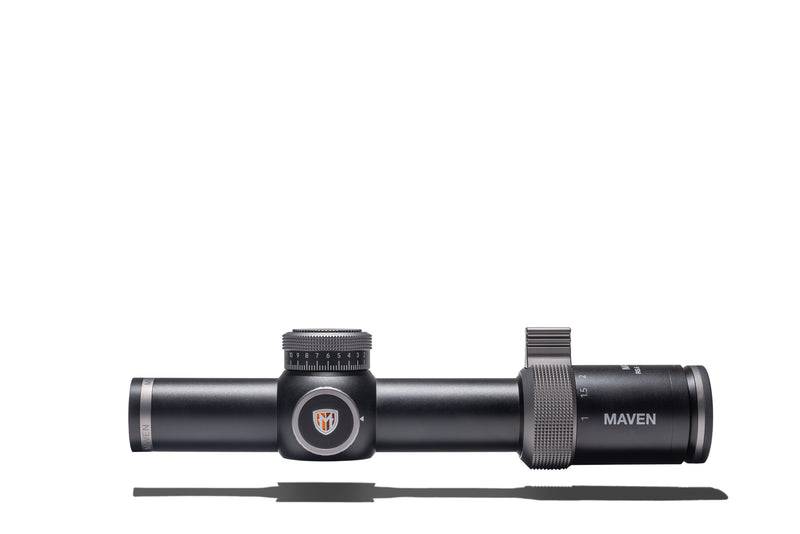

RS.6 Riflescope Bundle
Achieve mission-ready performance for competitive shooting and tactical applications with the Maven RS.6 Riflescope Bundle. This kit pairs the high-performance RS.6 optic with Warne's Skeletonized MSR Mount - giving you everything needed to get set up in one box. Save $265 when you purchase this bundle. Not available for additional promotions.
While most LVPOs available today start at 0-1x magnification and max out around 6-8x, we've bridged the gap between short-range and mid-range optics. Our design offers one of the best LVPOs on the market, excelling at 1x while also delivering exceptional performance and precision for mid-range applications.

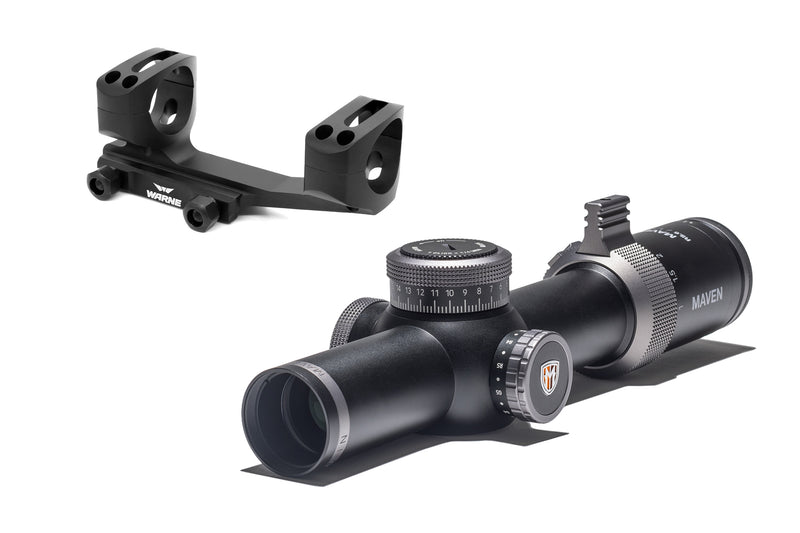

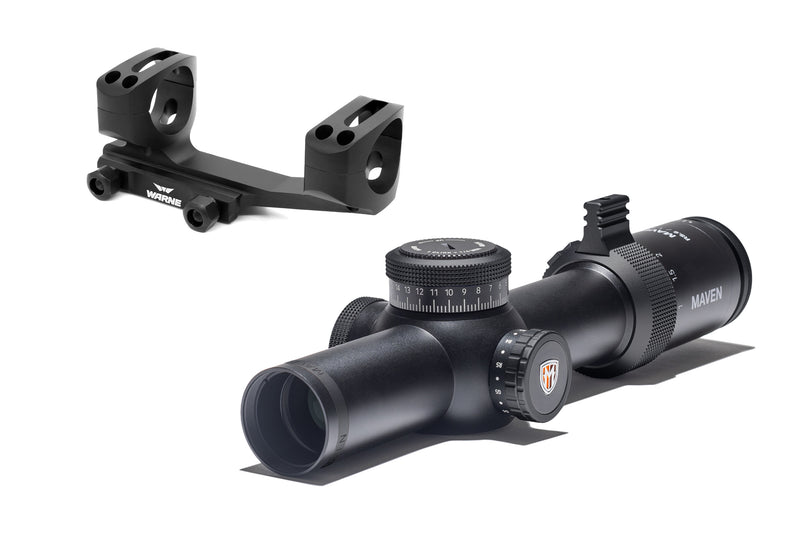

Bundle includes:
-RS.6 (with neoprene cover)($1,850)

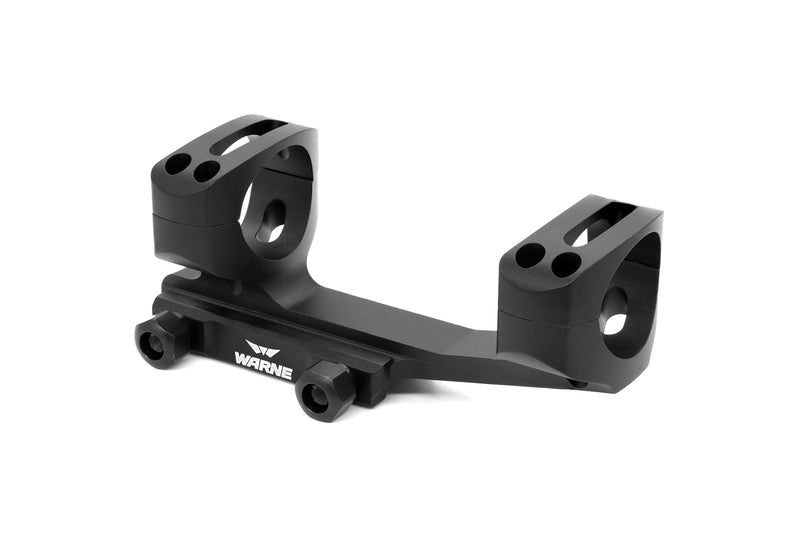

-Warne Skeletonized MSR Mount ($190)
Learn more about the RS.6 Riflescope
Note: International orders may have restrictions or take additional processing time. Contact us if you have any questions or need additional information.
|
RS.6 MOA
|
RS.6 MIL | ||
| Focal plane | First | ||
| Magnification range | 1x - 10x | ||
| Obj. lens diameter | 28mm | ||
| Tube diameter | 34mm / 1.34in | ||
| Objective outer diameter | 34mm | ||
| Eyepiece outer diameter | 46mm | ||
| Overall length | 270mm / 10.6in | ||
| Weight (without battery) | 23.7oz / 570g | ||
| Internal adjustment range (MOA/MIL) | |||
| Travel Elevation | 100 MOA | 29 MIL | |
| Travel Windage | 100 MOA | 29 MIL | |
| Click value | 0.250 MOA | 0.1 MIL | |
| Adjustment per turret revolution | 25 MOA | 10 MIL | |
| Parallax adjustment | 100y (fixed) | ||
| Exit pupil diameter | @1x: 8.1mm | @10x: 2.8mm | |
| Eye relief | @1x: 83-99mm | @10x: 85-92mm | |
| Field of view @ 100y | @1x: 116.6ft | @10x: 11.7ft | |
| Front/Rear mounting length | F: 64mm |
R: 56mm
|
|
| Effective objective lens diameter | @1x: 8.1mm | @10x: 28.0mm | |
| Field of view | @1x: 22° | @10x: 2.23° | |
| Field of view, apparent | @1x: 22° | @10x: 22° | |
| Diopter correction (dpt) | +/-2 | ||
| Light transmission | 89.16% | ||
| Twilight factor | @1x: 5.3 |
@10x: 16.7
|
|
| Functional temperature | -4°~158°F | ||
| Submersion tightness / waterproof rating | 3m depth | ||
| Gas purged | Nitrogen | ||
| Reticle construction | Etched Glass | ||

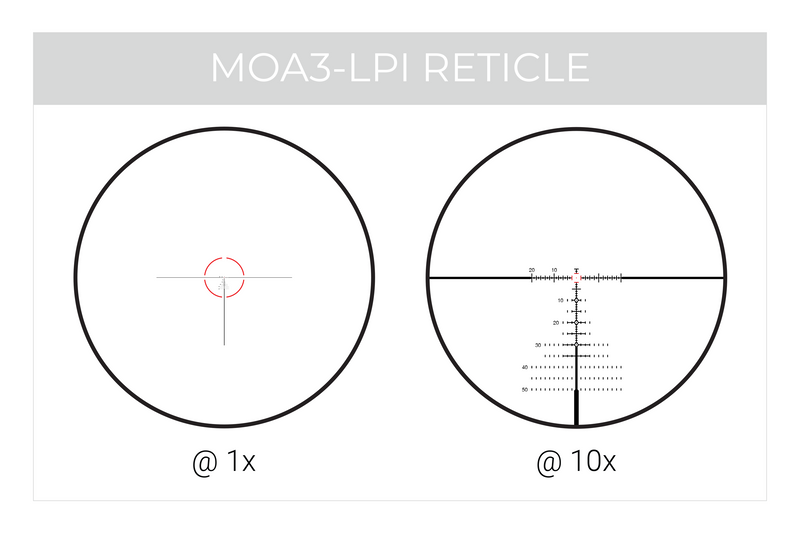

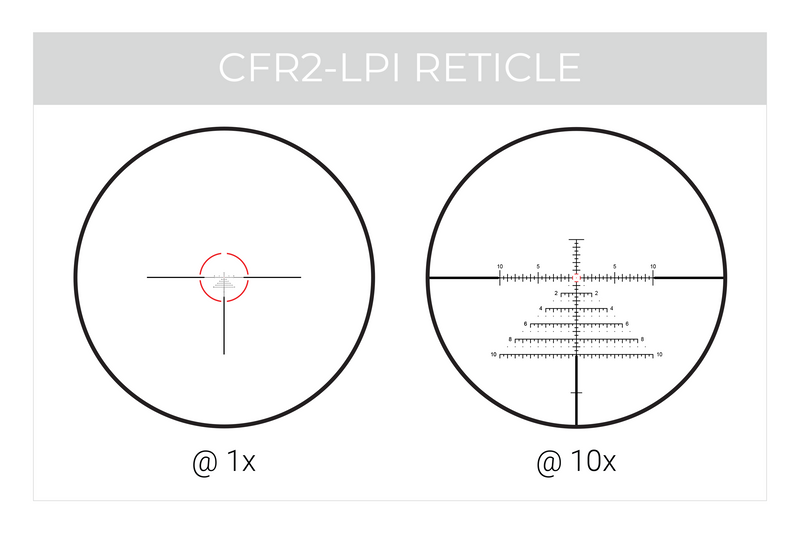

| Reticle options | MOA-3 | CFR-2 | |
| Illuminated reticle Y/N | Yes | Green/Red | |
| Origin | Made in Japan |
